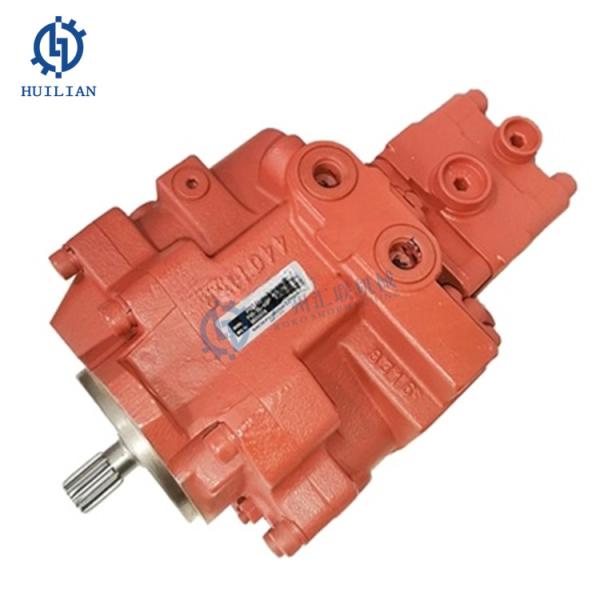

Excavator Spare Parts Hydraulic Pump Nachi 2b-40p 4403501 4466797 Hydraulic Pump For YC35-7 ZX50
Product Description
| Product Name | Excavator Hydraulic Pump |
| Brand | Huilian |
| Machine model | YC35-7 ZX50 |
| Pump Number | pvd-2b-40p |
| N.W/KG | 130KG |
| G.W/KG | 140KG |
| Packing Size | 84*38*49 |
| Part number | 4403501 4466797 |
| Pressure | Standard, High Pressure |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
| | 4403501 | PUMP; PISTON | 1 | |
| 1 | | . | 1 | |
| 2 | | . BLOCK | 1 | |
| 3 | | . PLATE | 1 | |
| 4 | | . BLOCK; CYL. | 1 | |
| 5 | 0654101 | . PLATE; VALVE | 1 | |
| 6 | 0654102 | . PLATE; THRUST | 1 | |
| 7 | 0654103 | . SHAFT | 1 | |
| 8 | | . HOLDER | 1 | |
| 9 | | . PLATE | 1 | |
| 10 | | . PISTON | 10 | |
| 11 | 0735001 | . PUMP; GEAR | 1 | |
| 12 | 0327308 | . BRG.; NEEDLE | 1 | |
| 13 | 0654105 | . BRG.; NEEDLE | 1 | |
| 14 | 0654106 | . SEAL; OIL | 1 | |
| 15 | 0654107 | . PIN | 2 | |
| 16 | | . PIN | 3 | |
| 17 | | . PIN | 1 | |
| 18 | 0654108 | . SEAT; SPRING | 1 | |
| 19 | 0654109 | . SEAT; SPRING | 1 | |
| 20 | 0654110 | . SEAT; SPRING | 1 | |
| 21 | 0654111 | . BOLT; SETTING | 1 | |
| 22 | 0654112 | . SCREW; SET | 1 | |
| 23 | 0654113 | . ROTOR | 1 | |
| 24 | 0654114 | . NUT | 1 | |
| 25 | 0654115 | . BOLT; SOCKET | 4 | |
| 27 | 0654116 | . WASHER; THRUST | 1 | |
| 30 | 0436608 | . PLUG | 2 | |
| 31 | 0654117 | . SCREW; SET | 1 | |
| 33 | | . BRG. | 2 | |
| 34 | 0654118 | . BOLT; SOCKET | 2 | |
| 35 | 0667714 | . BOLT; SOCKET | 4 | |
| 37 | | . SPRING | 1 | |
| 38 | 0654119 | . SPRING | 1 | |
| 39 | 0654120 | . SPRING | 1 | |
| 40 | 0654121 | . PIN | 1 | |
| 41 | 0396814 | . PIN | 2 | |
| 43 | 0654122 | . COVER | 1 | |
| 44 | A810070 | . O-RING | 2 | |
| 45 | 4506408 | . O-RING | 1 | |
| 46 | 4116303 | . PIN; SPRING | 1 | |
| 47 | 0731706 | . O-RING | 1 | |
| 48 | A810085 | . O-RING | 1 | |
| 49 | | . HOLDER; SPRING | 1 | |
| 51 | 0654124 | . COVER | 1 | |
| 52 | 0654125 | . PIN | 1 | |
| 53 | | . PLUG | 6 | |
| 56 | 0654126 | . GASKET | 1 | |
| 61 | 0654127 | . BUSHING | 1 | |
| 62 | | . RING; RETAINING | 1 | |
| 64 | | . NAME-PLATE | 1 | |
| 65 | 0629303 | . SCREW; DRIVE | 2 | |
| 66 | 4116305 | . PIN; SPRING | 1 | |
| 67 | 4506418 | . O-RING | 1 | |
| 69 | | . COLLAR | 1 | |
| 70 | 0429306 | . BOLT; SOCKET | 3 | |
| 76 | 957366 | . O-RING | 6 | |
| 78 | 0654128 | . STOPPER | 1 | |
| 79 | 0654129 | . BUSHING | 1 | |
| 80 | 0654130 | . WASHER; THRUST | 1 | |
| 81 | | . BUSHING | 1 | |
| 83 | 0654131 | . PLATE | 1 | |
| 89 | 0654132 | . SPRING | 1 | |
| 90 | 0654133 | . POPET | 1 | |
| 92 | | . PLUG | 1 | |
| 93 | | . PLUG | 1 | |
| 94 | | . PLUG | 2 | |
| 95 | 0654134 | . SHIM | 2 | |
| 96 | 0654135 | . PLUG | 1 | |
| 97 | | . PLUG | 1 | |
| 98 | 0654136 | . ORIFICE | 3 | |
| 99 | 0654137 | . RING; BACK-UP | 3 | |
| 101 | 0654138 | . SPRING | 2 | |
| 102 | 0654139 | . PLATE | 1 | |
| 103 | 0434509 | . SCREW | 2 | |
| 104 | 0654140 | . COVER | 1 | |
| 105 | A810050 | . O-RING | 1 | |
| 106 | 0654141 | . NUT | 1 | |
| 107 | 0654142 | . BUSHING | 1 | |
| 108 | 4506406 | . O-RING | 2 | |
| 114 | 0714808 | . WASHER | 2 | |
| 130 | 4506408 | . O-RING | 2 | |
| 131 | | . STOPPER | 1 | |
| 132 | 94-2010 | . PLUG | 2 | |
| 200 | 0654143 | KIT; SEAL | 1 | |
| 300 | 0654144 | KIT; SEAL | 1 | |
| 400 | 0654145 | KIT; PLATE | 1 | |
| 500 | 0654146 | KIT; CYL. -BLOCK | 1 | |
| 600 | 0654147 | KIT; RETAINER | 1 | |
